PRODUCT FEATURES:

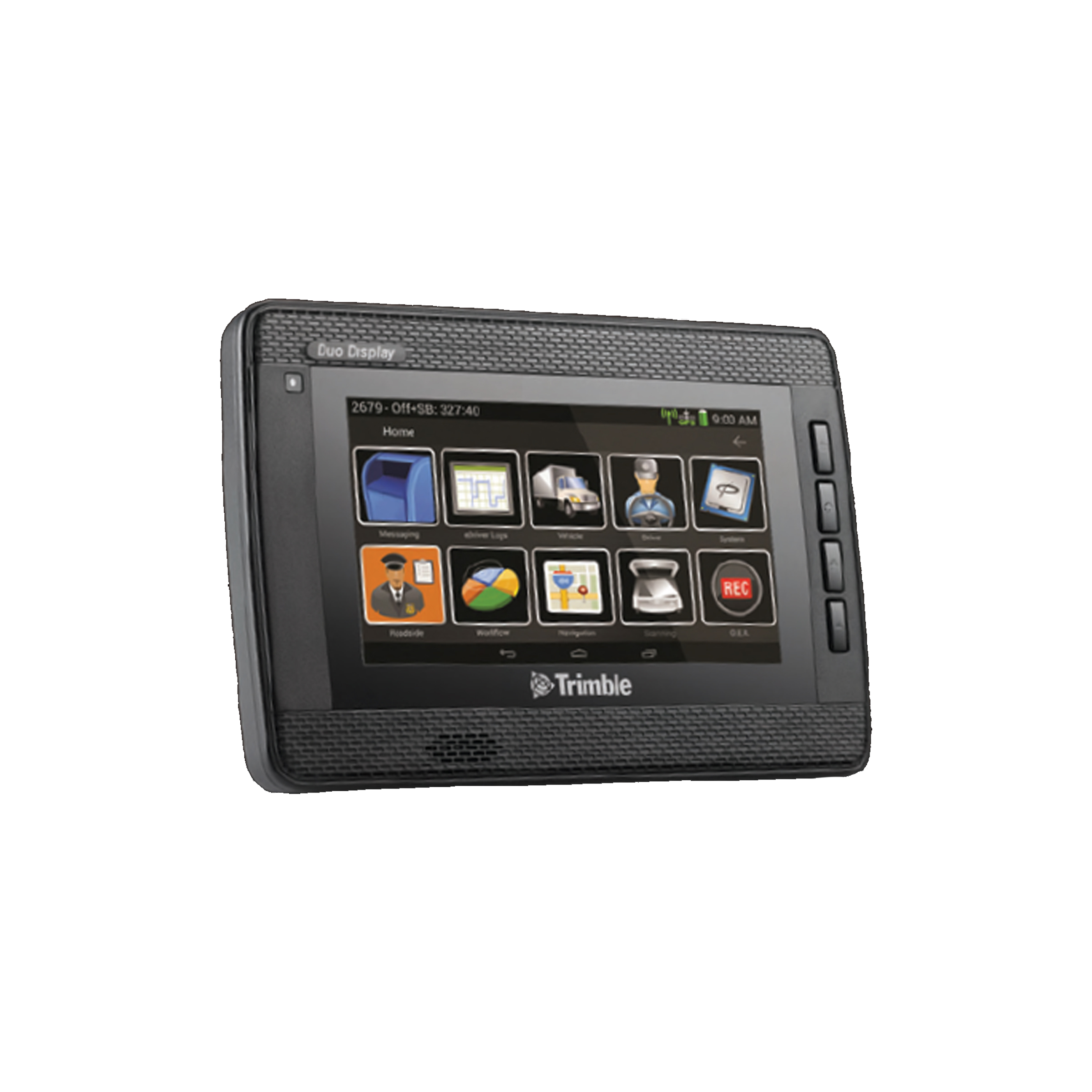

The Trimble Duo Display (TDD) is an Android-powered fixed-mount display that offers Wi-Fi connectivity and 2GB of memory with a quad-core processor. The TTD runs Trimble’s PMobile, eFleetSuite and MAPs applications, as well as third-party apps such as DriveWyze, so fleets can meet their business-specific needs. The TTD can pair with the PMG, PCG or Trimble Gateway to create a customizable solution for LTE connectivity. Its larger battery offers 15 minutes of unhooked connectivity, even when used outside of the cab. The TDD does not support image capture.
- FAST AND EASY INSTALLATION
- Trimble Duo Display installs in minutes minimizing vehicle downtime
- INTUITIVE TOUCH-SCREEN
- The design and intuitive features of the touch screen makes navigation and in-cab ELD-compliant hours of service tracking safe and efficient
- EASY-DISCONNECT
- Although the display is mounted on the dashboard its easy-disconnect feature allows for short-term portability for ELD vehicle inspection reports and signature capture
- RUGGEDIZED
- This display is built to perform in the changing environments and weather conditions professional drivers face on the road
- DIMENSIONS
- 9”W x 6.2”H x 1.2”D
- Internal antenna
- Wi-Fi, GPS, and Bluetooth
- Two USB 2.0 ports
- 7” color TFT LCD Touch screen display with LED backlighting / Brightness 500 nits minimum
- Viewing angle: Horizontal (left/right) = 70° / 70° minimum; Vertical (top/bottom) = 50° / 60° minimum
- Main Processor Unit: CPU – freescale i.MX6Q Quad Core (ARM Cortex A9 core) running at 1.0GHz (2.5 DMIPS/MHz per core) or higher performance
- Flash Memory/Mass Storage: 16 GB eMMC managed NAND flash memory minimum
- Main Memory: 2 GB DDR3 533 minimum
- Internal forward facing speaker to support audible alerts and notifications
- External Storage: Full SD card slot that supports SDXC format with capacities up to 128GB memory card. Access to the SD slot should be secured
- Operating Temperature: -20° C to +70° C with external power; -10° C to +60° C with battery power
- Storage Temperature: -30° C to +80° C
- Operating Humidity: 0 – 95% non-condensing
- 3-year limited warranty
