PRODUCT FEATURES:

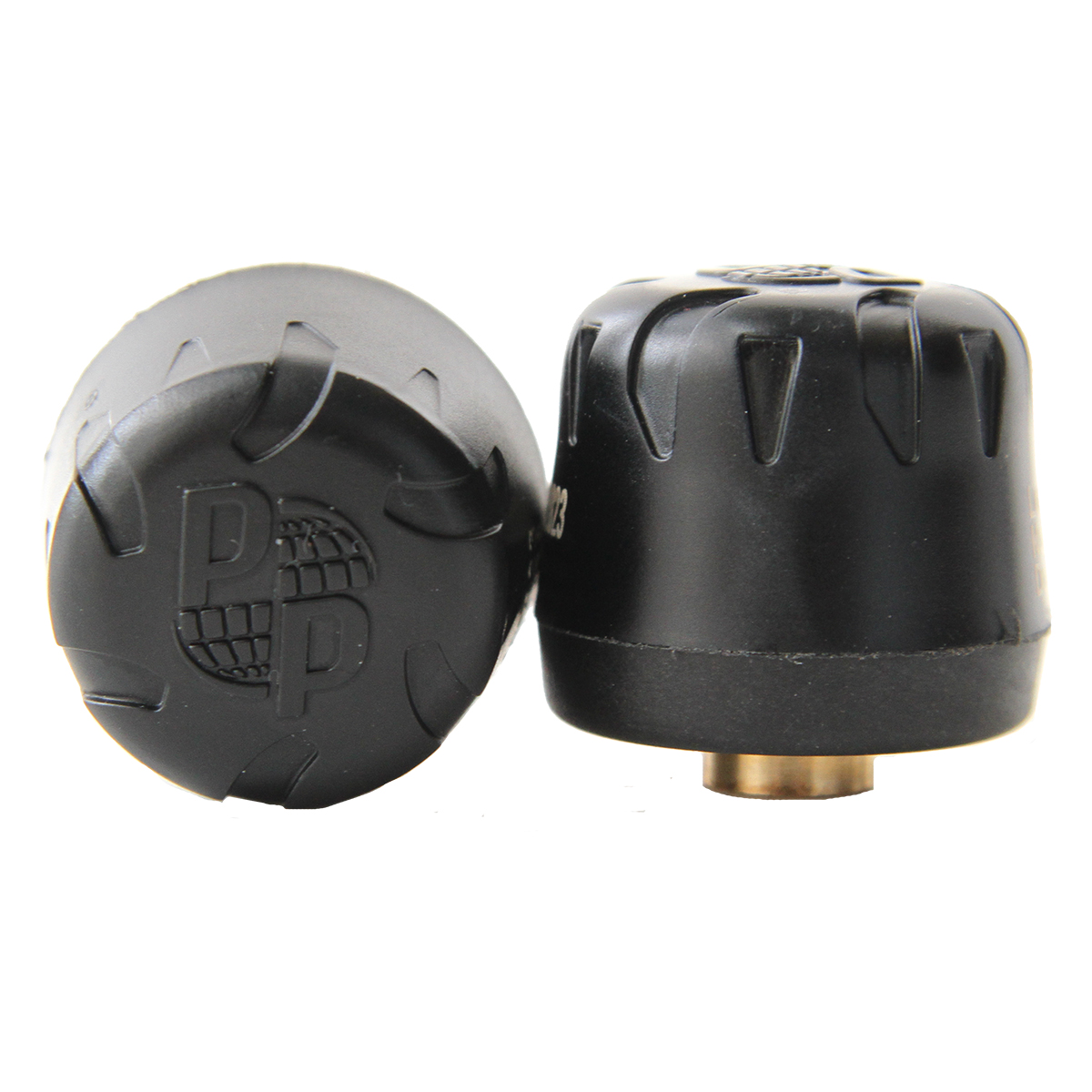

PressurePro’s new line of innovative sensors with sensing technology feature a high-grade brass structure to ensure advanced protection and sealing against industrial and environmental hazards and protect against common failures such as those caused by machine/vehicle vibration. This is coupled with a unique, multi-layer design built to perform even in the presence of tire contaminants. These sensors arm users with the unrivaled durability and fluid protection. Tested to SAE J1455 and heavy equipment OEM standards, PressurePro sensors provides advanced survivability even in the most challenging and harshest environments.
- Height: 1.146 in / 29.1 mm (includes valve fitting)
- Diameter: 1.146 in / 29.1 mm
- Sensor Weight: 26.2 grams
- Conformity Testing: FCC, IC, CE, RoHS
- Environmental Testing: Select J1455 and MIL-STD-810G
- Sensor Transmit Range*: Up to 100m (line-of-sight)
- RF Transmission: 433.92 MHz
- Temperature Range: -20° to 70°C Operating
- Temperature Resolution: 2.5°F/1.4°C (±5°F/2.8°C)
- Sampling / Reporting: 7 sec/5 min
- Power: 3V Lithium Coin Cell Battery (internal, non-rechargeable)
- Sensor Pressure Range: Operation 8-188 psi with blowout detection
- Pressure Resolution: 1 psi/6.9 kPa
- Pressure Accuracy: 2 psi/13.8 KPa below 130 psi, 3 psi/20 kPa above 130 psi
- Installation: Female threads, screws directly onto standard bore valve stem
- Sensor Install Torque: 13.3 in-lb (1.5 N-m)
- Manufacturing: Designed and Manufactured in the USA
- Survivability: Multiple layers of protection for unmatched durability
- Pressure Triggers: Low and blowout
*Sensor reception is dependent on the vehicle environment and receiver antenna location.
